Ultrasonic sealing

Ultrasonic sealing is perfect for packaging solutions in the food industry. Visually appealing, long shelf life and 100% tight – these are the criteria for manufacturers and consumers. This is why this type of sealing is perfectly suited for:

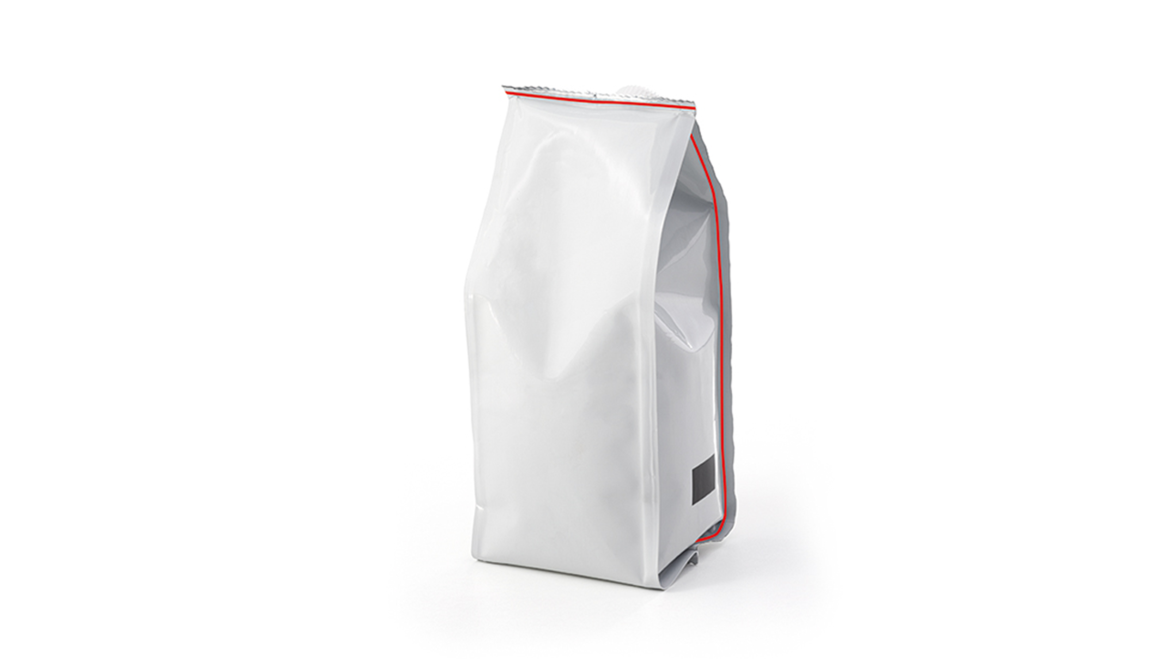

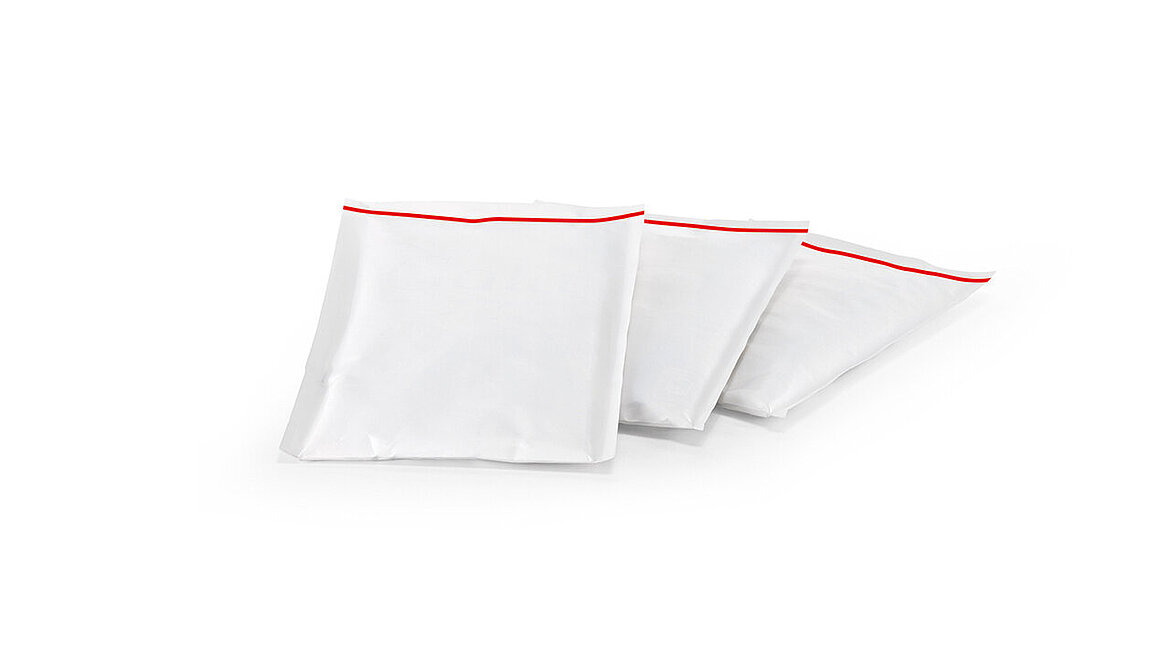

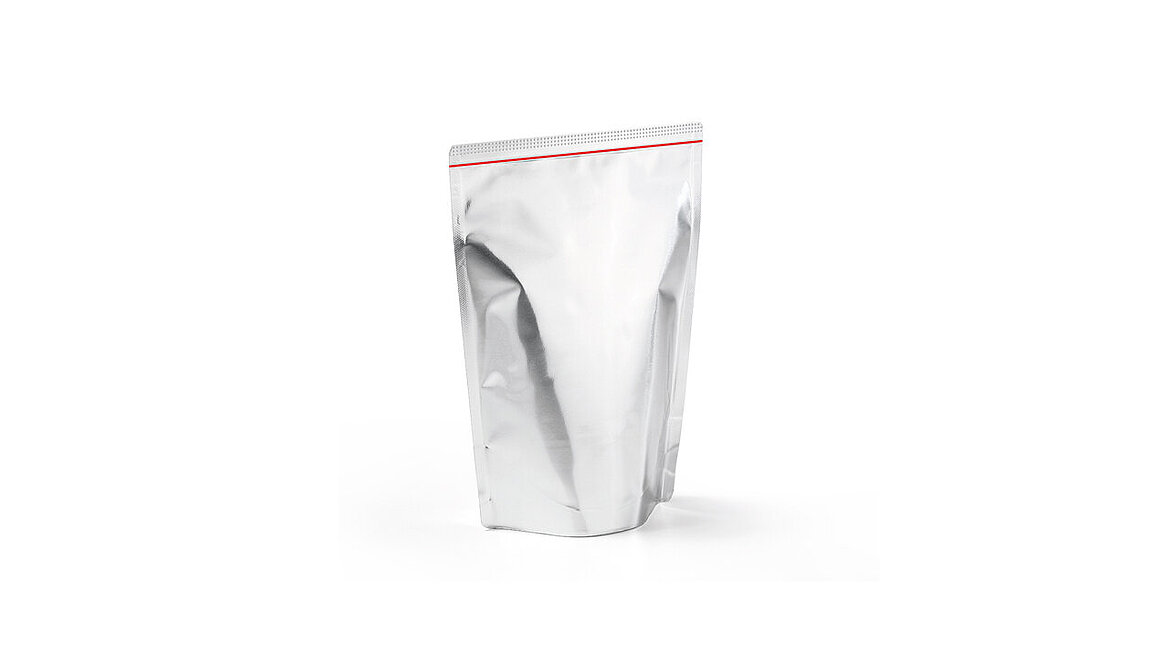

  • Thermoplastic films for bags, e.g. salad from the chiller or ready-meals in bags
  • Tubes, trays and cup goods, e.g. lids for yogurt cups or the caps on tubes of toothpaste
  • Cardboard packaging with thermoplastic coating, e.g. drinks cartons
  • Valves on films/filter materials, e.g. degassing vent when packaging coffee beans
  • Screw caps on coated cardboard packaging/films, e.g.: seals on milk

This is how ultrasonic sealing works

operating-principle-ultrasonic-sealing-of-films-and-packaging-materials

Weld tools (anvil or sonotrodes) focus the ultrasonic energy on the point at which the welding should take place, and friction heat is generated. The sealing time is between 100 and 200 milliseconds. Unlike heat sealing, the heat required in ultrasonic technology is only generated within the materials being welded. The tools remain cold and support the dissipation of heat. The hot-tack resistance (strength of the seam directly after welding without cooling) is also significantly higher than with other welding methods.

More about the ultrasonic sealing of films

Joint design – this is how it works

For precise welding to take place, the energy from the ultrasonic waves must be focused (energy focusing). This is either achieved via the tool geometry or the joint design on the material. In the case of joint design, the area at which the material is to be joined has special shapes such as points or edges. In the case of tool geometry, sonotrodes or the anvil are specially shaped to focus the energy.

ultrasonic-sealing-films-before-sealing

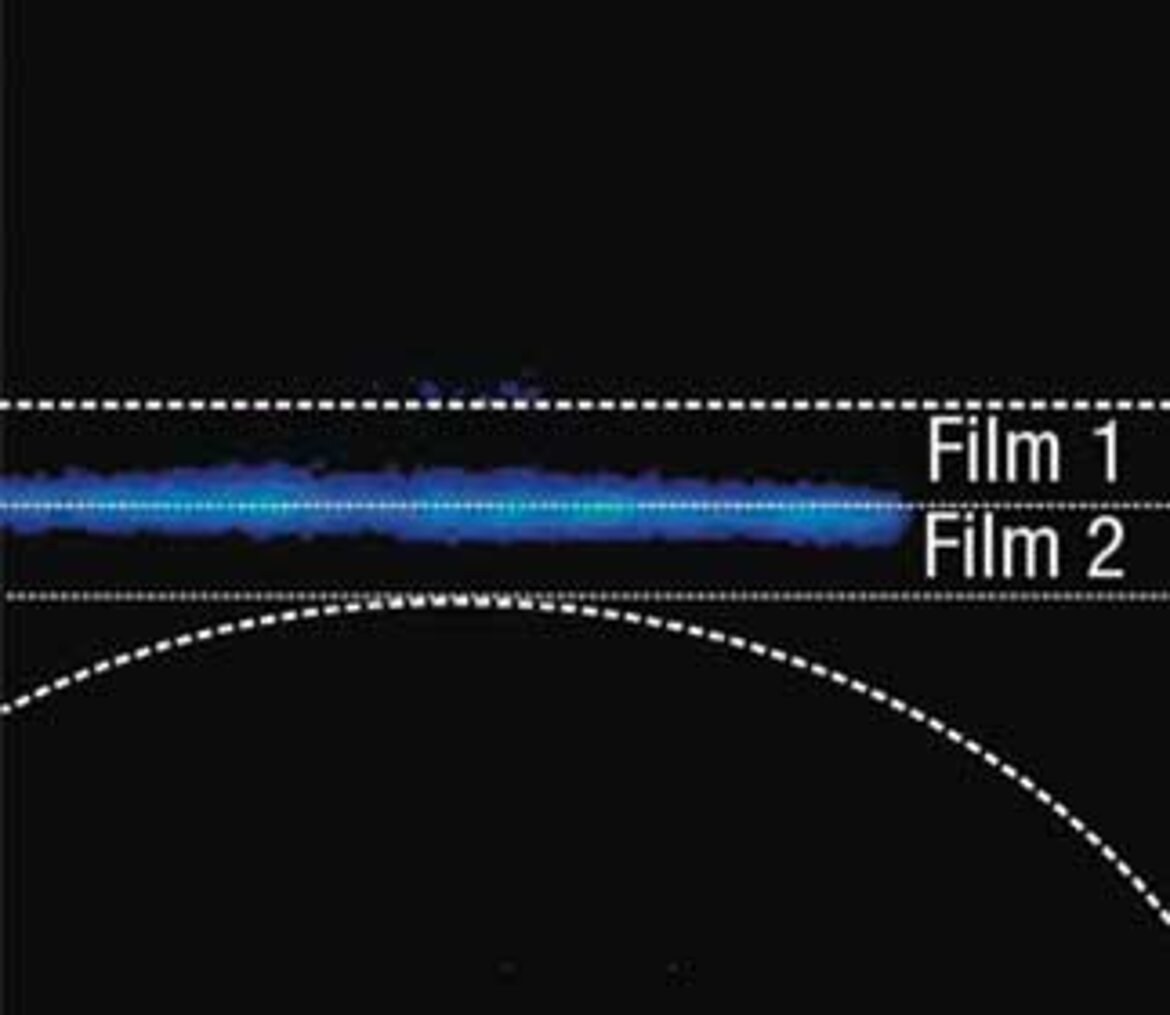

The sonotrode moves onto the films, which are still cool, and introduces the ultrasonic waves.
ultrasonic-sealing-heat-development-between-two-films

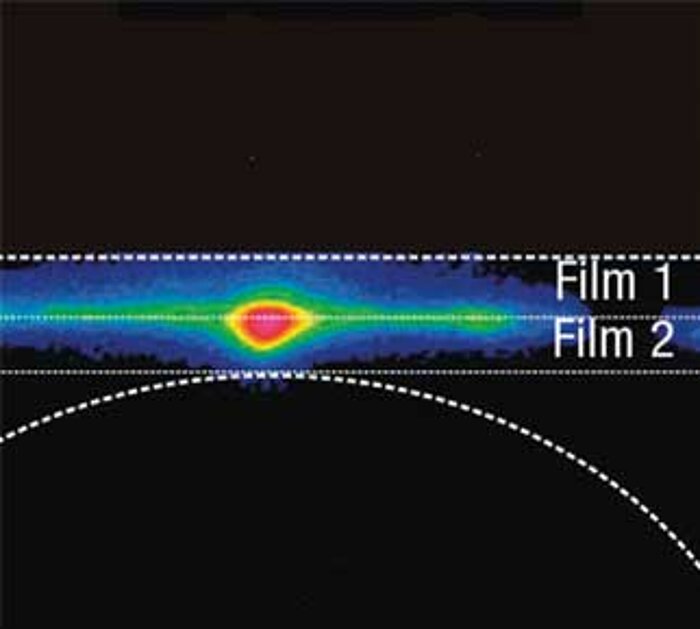

The anvil focuses the energy and heat is generated at precisely the right spot within the films.
ultrasonic-sealing-melting-point-films

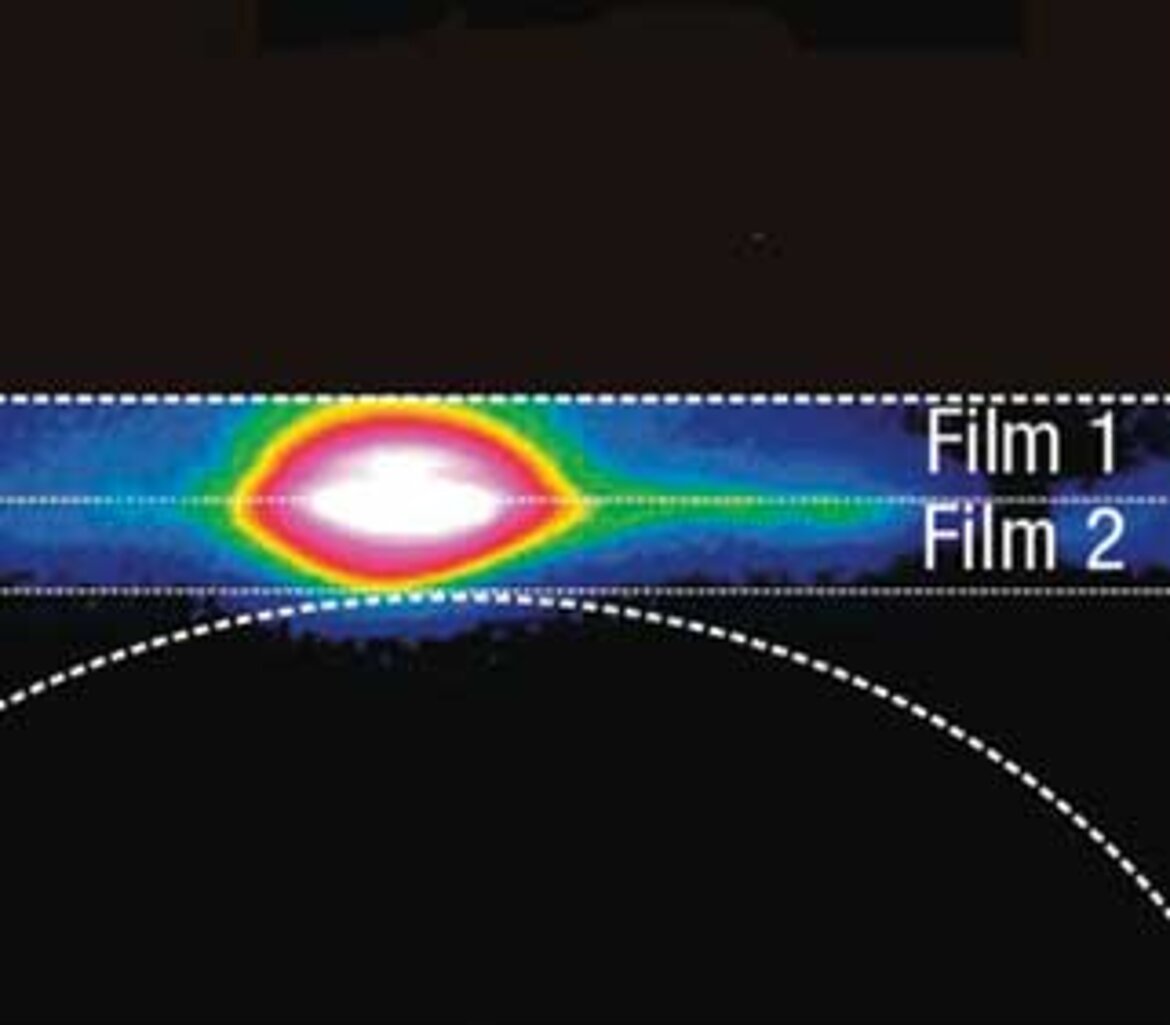

The films melt and are joined by the additional pressure.
