Packaging sealing

TSM Top seal modules

The top seal module from Herrmann brings together the experiences from more than 1,000 top-seal sealing stations on the market. With its modular design, it is configurable for a variety of packaging machine types.

  • 30 and 35 kHz operating frequency
  • up to 207 mm sealing length
  • up to 1200 N sealing force

The PACKLINE modules from Herrmann achieve strong and hermetic sealing. Burns caused to the packaging material during machine downtimes are safely prevented. The top seal module is optimally suited for integration in new machinery or as retrofit for existing machine designs. If the tools are designed with protection class IP65/67, the top seal module is also suitable for use in wet environments with advanced cleaning capability requirements.

The pneumatic generation of force is integrated in the top seal module, which results in considerable freedom as regards the drive concept. Pneumatic and electric drives can be adapted on the drive shaft. A mechanical connection with the main drive shaft of the packaging machine can also be realized. To fulfill various assembly conditions, the drive may be installed on either the left or the right side of the module – this is particularly beneficial in the case of multi-line systems.
The integrated pneumatic cylinder means that the sealing force is immediately available with the contact of the sealing tools. This PreLoaded concept allows for the process-safe  sealing of pouches, also with high machine speeds.

  • Flexible in the drive selection
  • Configurable installation
  • Safe sealing at high cycle rates thanks to PreLoaded function
Top seal module TSM 30 kHz 35 kHz
Generator power [W] 1800 1200
Max. weld force at 6 bar [N] 750/1200 750/1200
Max. sealing length [mm] 207 135
Max. opening width [mm] 50/100 50/100
Drive configuration Left hand/right hand Left hand/right hand

HDM ProcessControl

The “High Precision Distance Measurement” function is a quality control which recognizes faulty pouch conditions in the sealing stations and enables suspect pouches to be rejected. The HDM sensor which is integrated in the TSM determines the distance of the sealing tools. The signal is evaluated directly on the ultrasonic generator that allows for exceptionally high evaluation speeds, which are particularly advantageous on  high-speed  packaging systems. The intelligent generator management is able to compensate for thermal influences, which means a constant quality control is guaranteed throughout the entire machine running time.

Recognizable faulty conditions

  • Double pouches
  • Folded pouches
  • Solid product in seal area
  • Missing pouches

Customer benefits

  • Reduction of faulty pouches in the actual yield (downstream)
  • Reduced  effort in the quality control
  • Prevention of metal contact of the tools for a long service life

Advantages of ultrasonic sealing technology

  • Tight and strong sealing, even with seal contamination
  • Short start-up time, as no heating of the sealing tools required
  • Cold sealing tools protect the product during the filling
  • Integrated quality control
  • Suitable for wet cleaning due to protection class IP65/67
application engineering

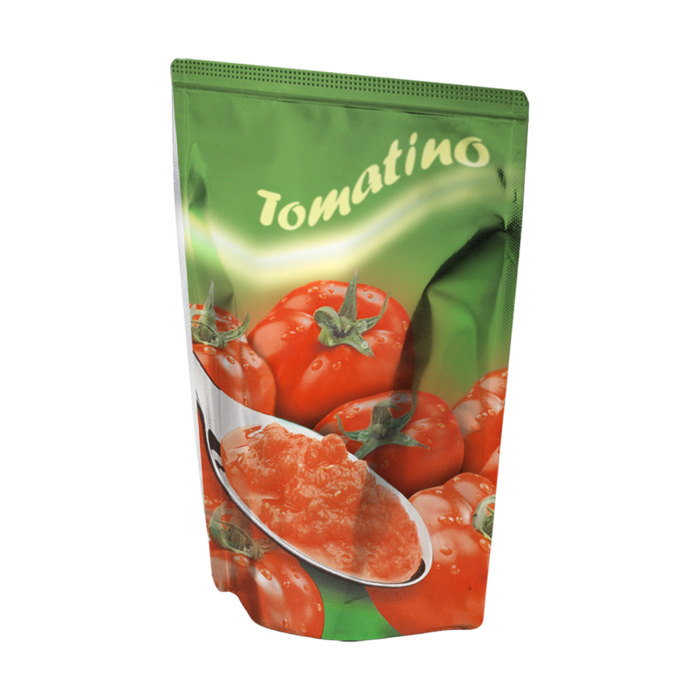

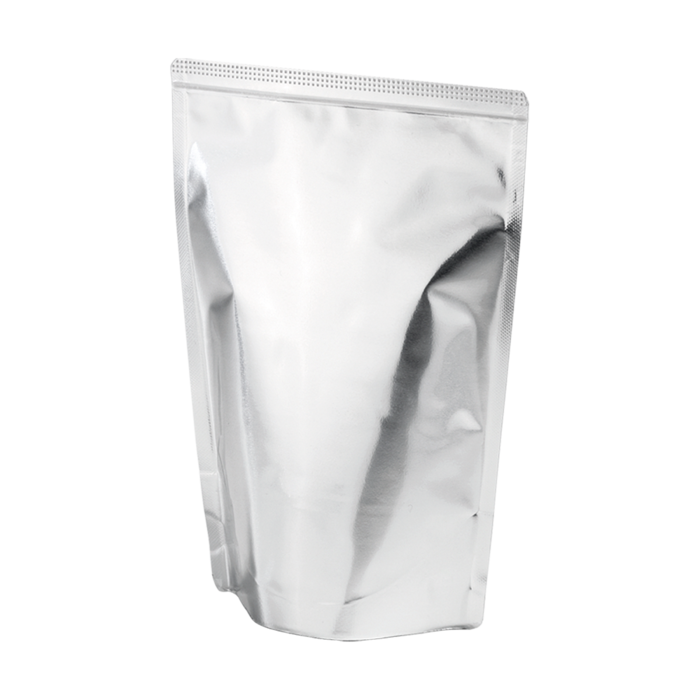

Application examples

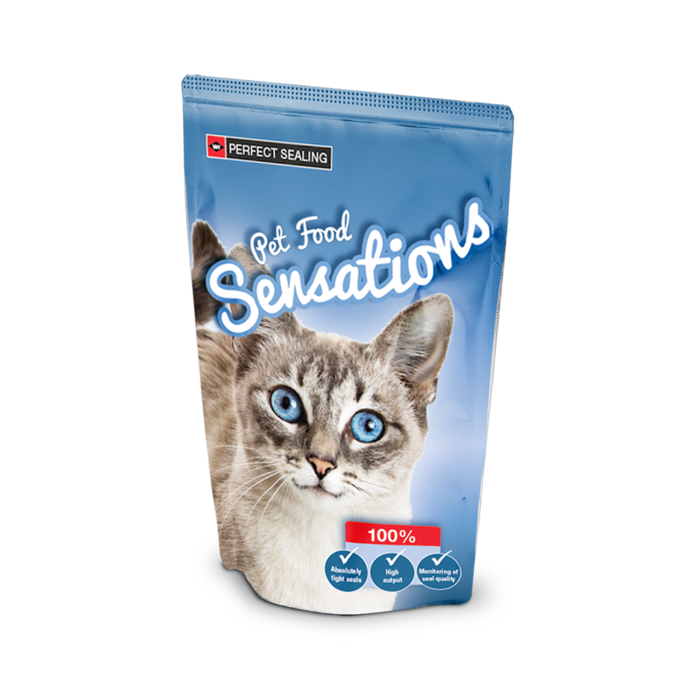

  • Wet  pet food
  • Ready meals
  • Pickled cabbage / red cabbage
  • Drinks
  • Herbs and spices
TRUSTED ADVISOR
We see ourselves as your technology partner and solution specialist. Our aim is to increase the economic efficiency and quality of your application – for sustainable and environmentally friendly processes.
APPLICATION ENGINEERING
We work with you to develop customized solutions which correspond to your demands precisely. As experts in our field, we develop applications which make your project a success. Here, we rely on long-standing technology partnerships and the results from over 40 high-tech laboratories around the world.
PERFECT PRODUCT
We offer a premium product portfolio with the highest quality standards – Made in Germany. We stand for top weld results, professional integration and durability of all ultrasonic components and modules for an economical overall solution.
GLOBAL SERVICE
We guarantee reliability, safety and a quick on-site service as part of our concept, and immediate support in over 20 countries. For you, this means quick help when you really need it – at any time and in your local language.
SUSTAINABILITY
A simple route to more sustainability: not a problem with our efficient ultrasonic technology! The ability to do without joining materials and the low energy consumption mean that your production process will automatically become more sustainable. Reliable bonding will also reduce your rejects and prevent you from generating unnecessary waste.
