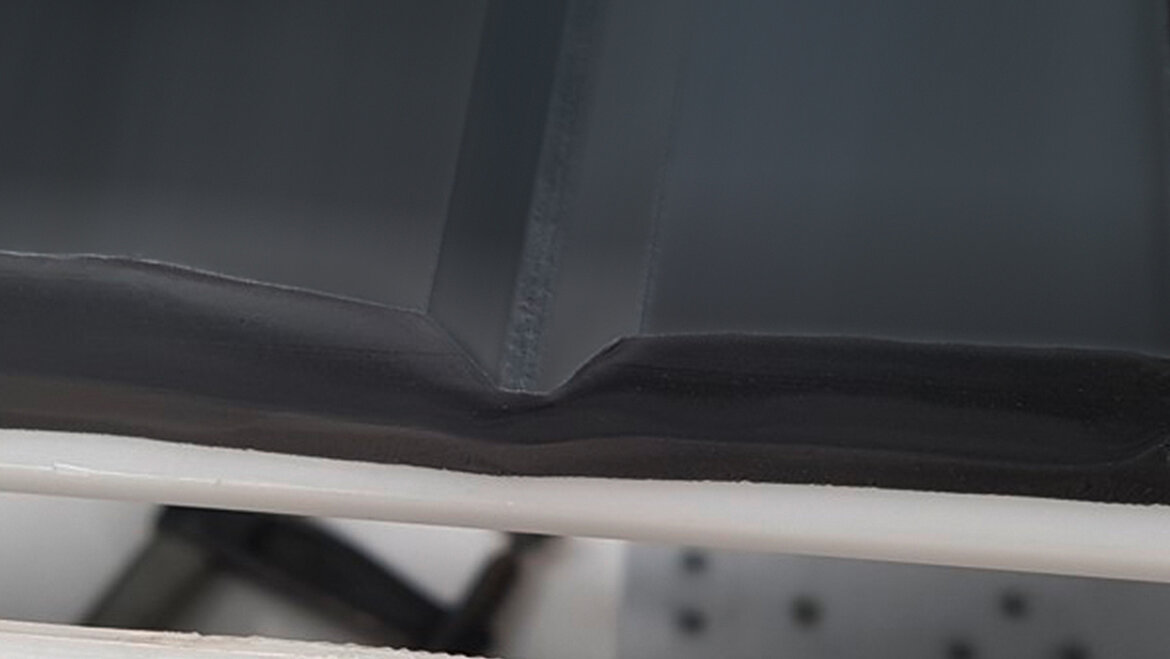

Cut edge
The perfect cutting result
The quality of the cutting edge is considerably better when using an ultrasonic cutting tool than with mechanical or thermal cutting processes. The high-frequency ultrasonic vibration reduces the resistance of the rubber material, making it easier to cut. This creates the perfect cutting surface for further processing.
Perfect Product
Components

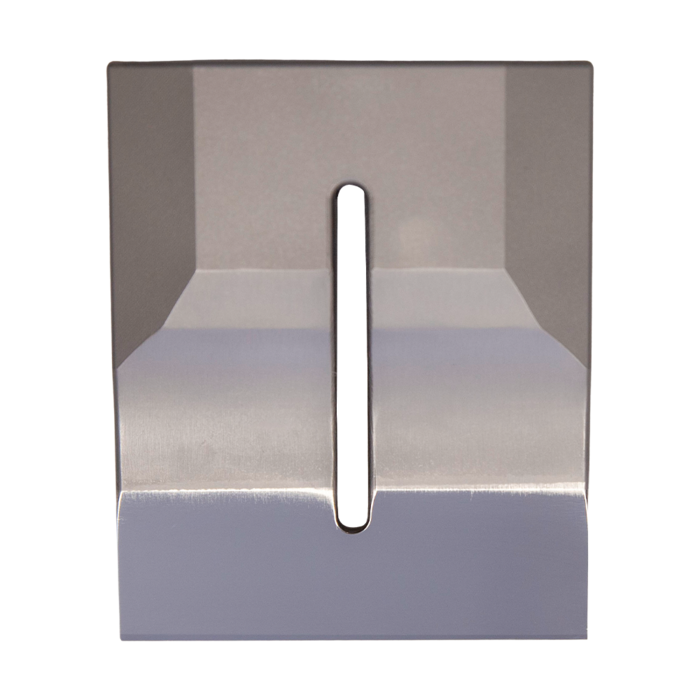

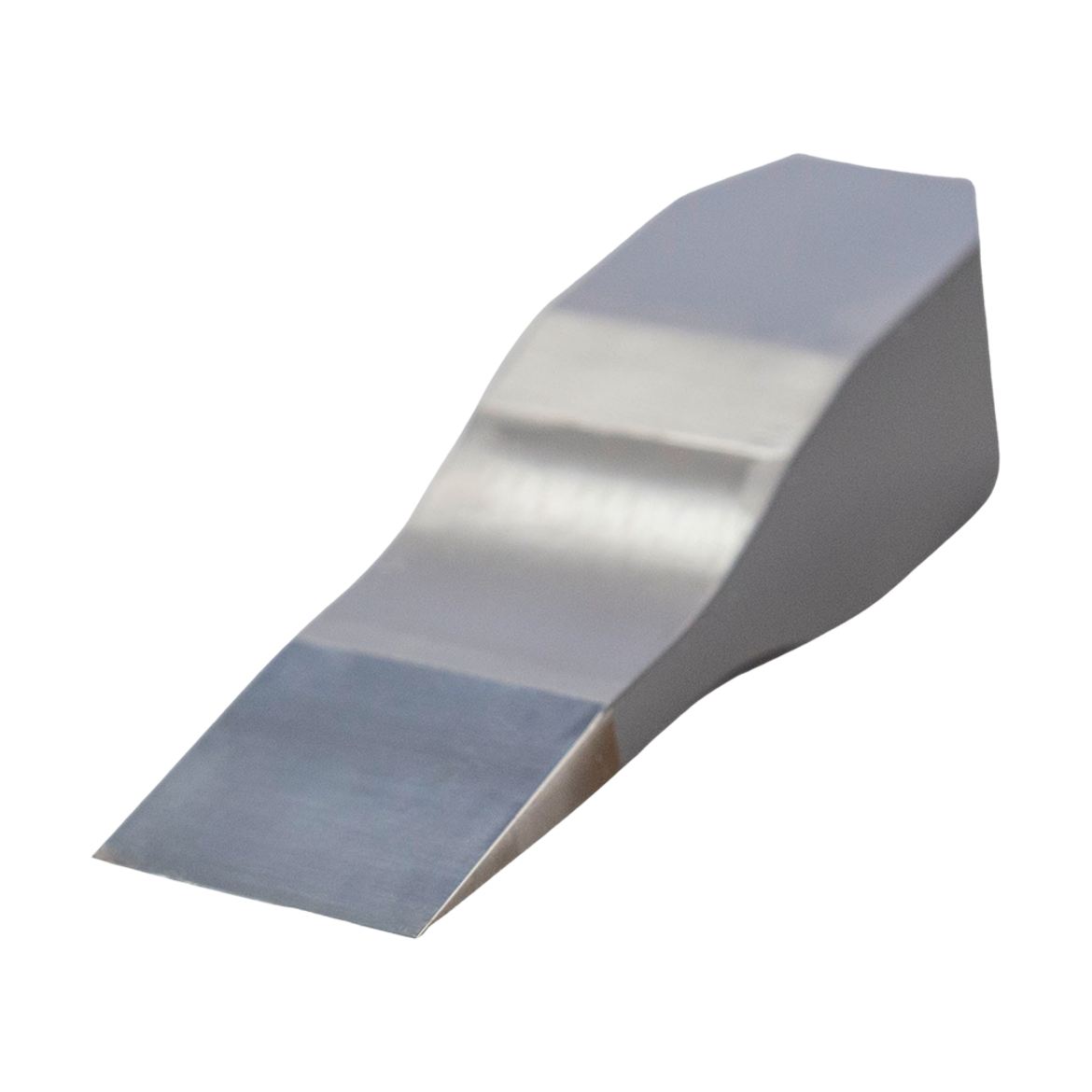

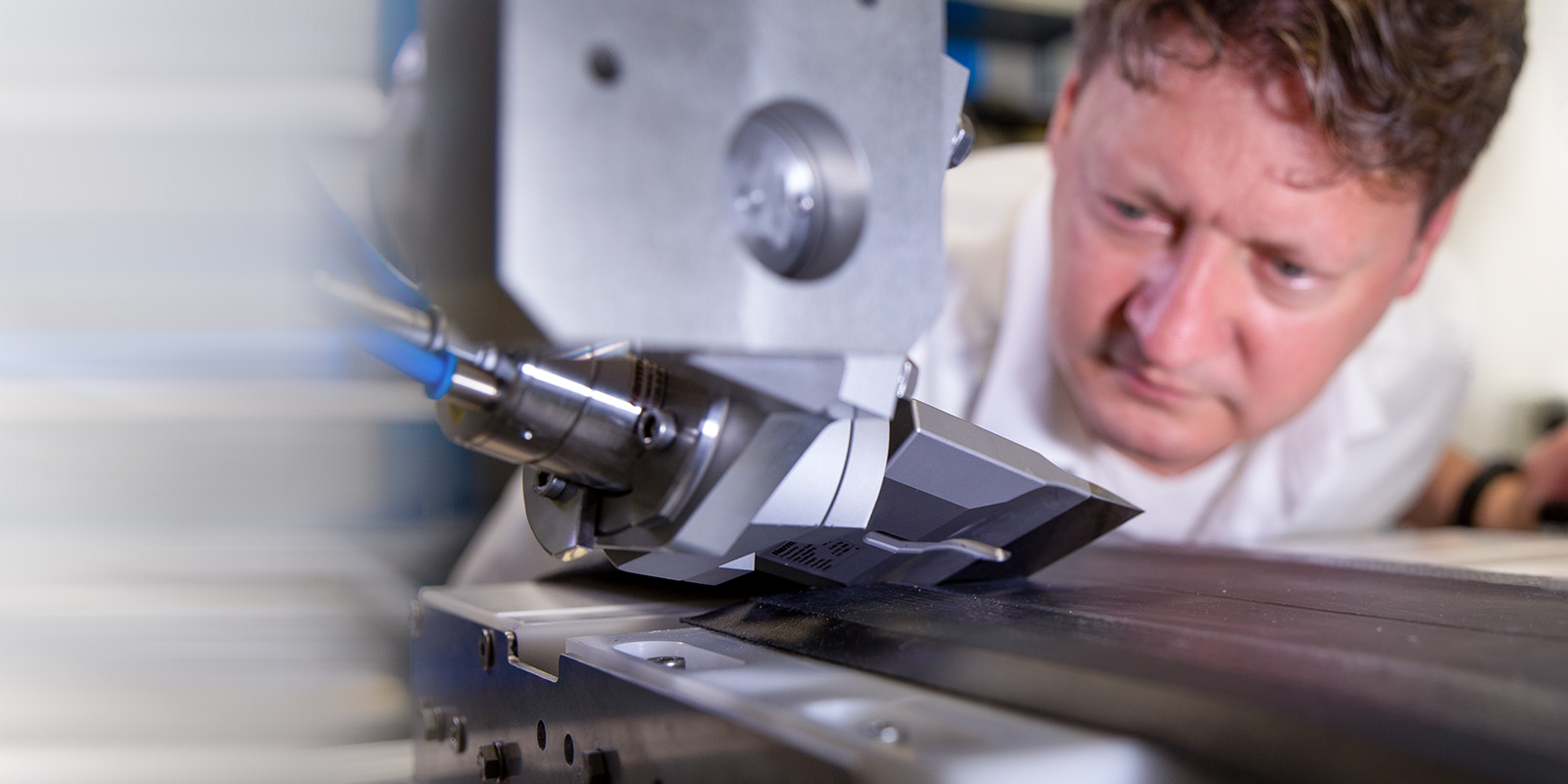

Sonotrode

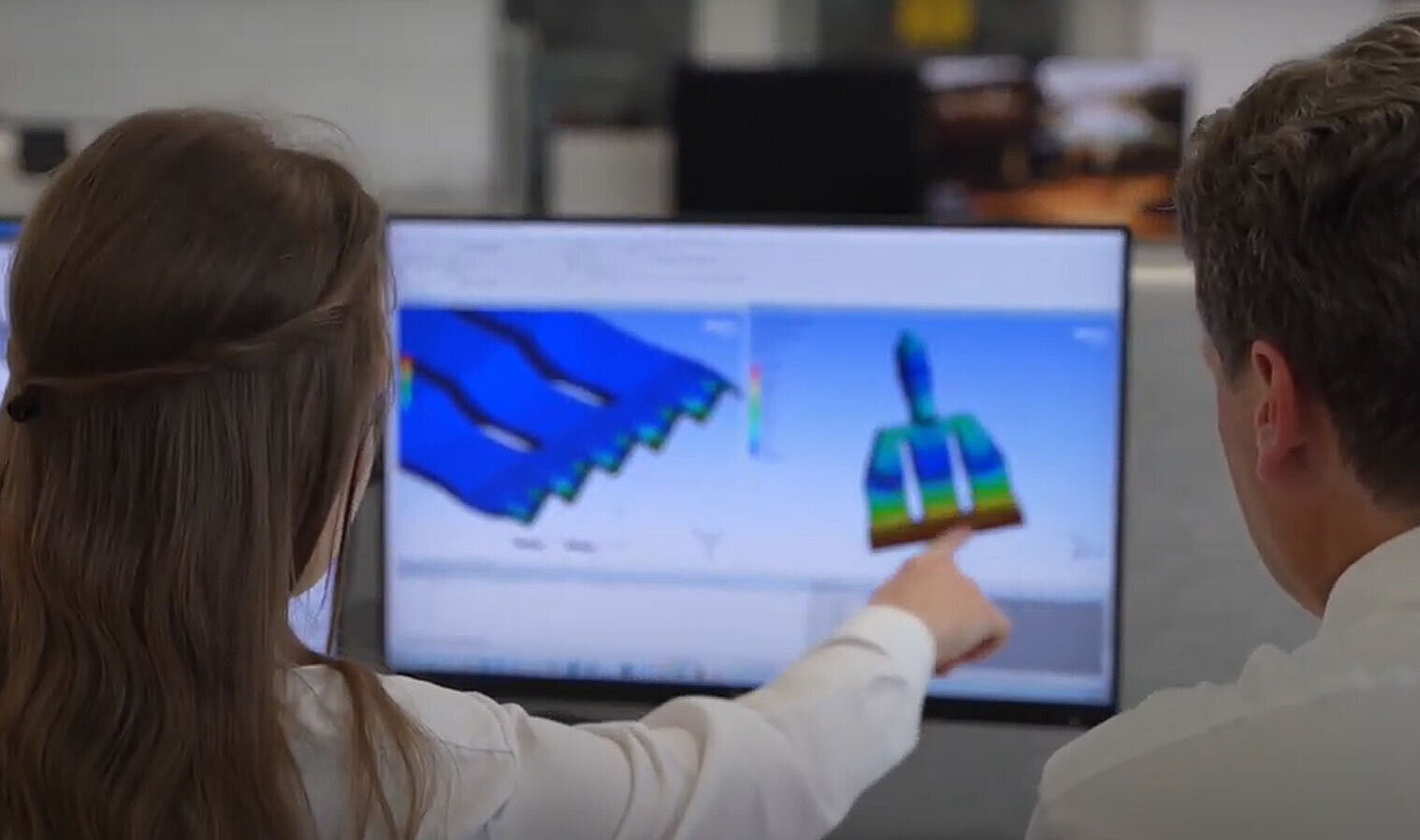

- Optimized sonotrodes calculated using the finite element method
- Auxiliary frequency analysis to prevent heat development
- Heat dissipation thanks to specially hardened steel
- Optional: Component cooling possible

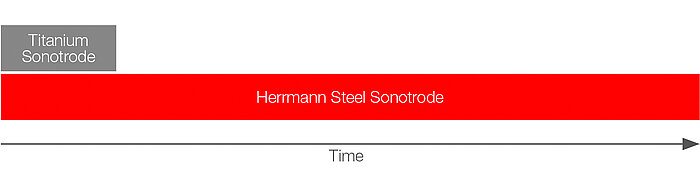

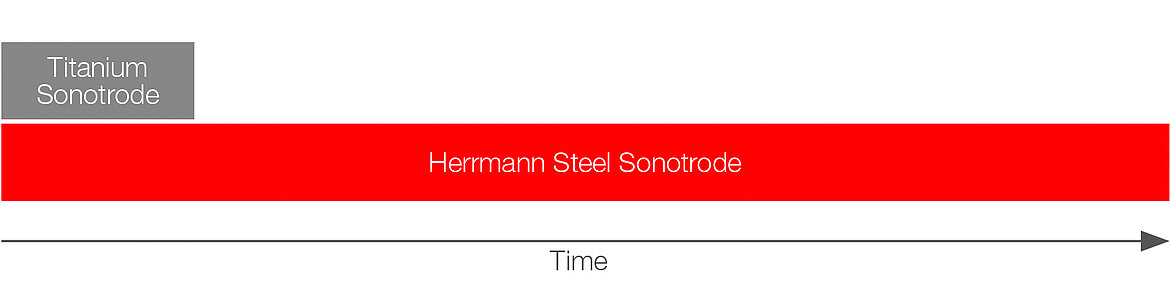

5 × more durable and robust
The Herrmann hardened steel sonotrode is up to 5 times more robust than standard titanium sonotrodes. If required, it is also possible to rework the cutting edge – this extends the service life even more.

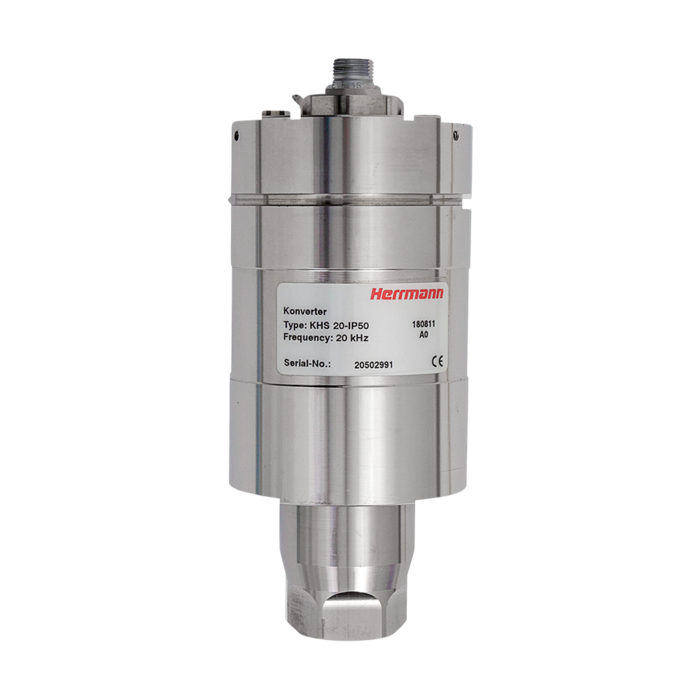

Converter
- Reliable four-disk piezo technology
- Absorption of axial and torsion forces thanks to rigid decoupling principle
- Sturdy body made from durable titanium
ULTRACUT-Generator
- USB and Ethernet interfaces
- Easy to enter process parameters, limits for power, time, energy
- System performance evaluation
- Generator with fieldbus interface for setting parameters
- DataRecorder data memory
- Graphical display of the cutting process by use of additional software (DIASim)

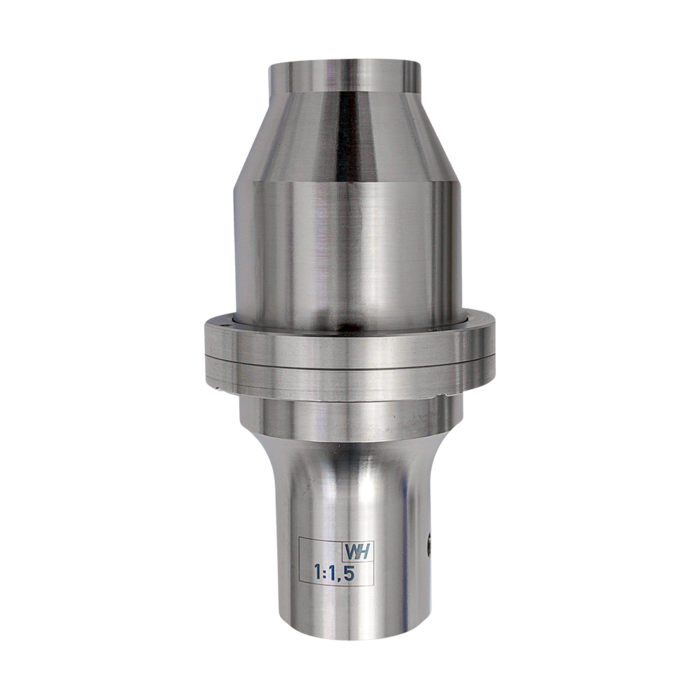

Booster
- Maximum efficiency thanks to increased amplitude
- Made from high-quality titanium
Why Herrmann?
Global partner with expertise
- Integration: Easy to integrate into existing production lines thanks to smart adapters. The simplest alignment options in the system.
- Process: Digital generator with limit monitoring and optional data recording, as well as visualization of the cutting process.
- Ingenious result: The optimized sonotrode surface design reduces resistance and thus prevents rubber burns and contamination on the cutting surface. Overall, significantly less contamination.
- Perfect product: Sturdy designs to prevent costly production down times. Optional system cooling to prevent the transfer of heat to the rubber material.
- Global service: Tech-Centers in over 20 countries guarantee local service and consistent quality with long-term spare parts availability.
