BATTERY

Nowadays, the requirements of battery products have become increasingly diverse and complex: in addition to precision, strength and minimum particle formation, process validation and traceability are equally important quality criteria. Ultrasonic welding qualifies as the best suitable joining technology.

scroll down

Welding batteries by ultrasonics

Highest weld quality: process visualization and process stability provide for product safety and repeatability. Small footprint for easy integration into production lines. Ultrasonic metal welding is the ideal solution for maximum quality in production. For our customers, we assume the role of both consultants and application problem solvers with regard to the ultrasonic joining of nonferrous metals.

In addition to leading-technology products, we provide excellent, in-depth application services for solving welding tasks, particularly taking into account the qualitative and economic aspects.

How to optimize your manufacturing of electric vehicles with ultrasonics

White Paper: 3 Boosters for E-Mobility – download now!

From batteries and cable connections to plastic components: Numerous applications in electric vehicles benefit from ultrasonics as a joining technology. Learn how to overcome the key challenges of e-mobility with ultrasonic welding!

Use the technology to permanently:

  • Reduce production costs
  • Increase the range of the EV
  • Make manufacturing processes more efficient & sustainable

Download now



Application Engineering

Successful ultrasonic solutions

Potential applications

Lithium-ion batteries (LIB)

A typical lithium-ion battery (LIB) uses copper foil as the anode and aluminum as the cathode. The welding of typically 20 to 120 foils to each other requires a high level of joining technology with long time process reliability. Burrs or cracks have to be avoided completely.
As more and more products contain rechargeable lithium-ion batteries (LIB), the battery manufacturers are aiming for ultrasonic welding as reliable battery assembly method. The specifications of the process demand a strong electric contact and no particles on the sealing film of the tab.

Pouch cell and soft cases

Ultrasonic welding offers an alternative to heat sealing the flexible LIB soft cases. The risk of damaging the cells is minimized by shorter cycle times and the use of cold ultrasonic welding tools as an alternative to hot sealing bars.

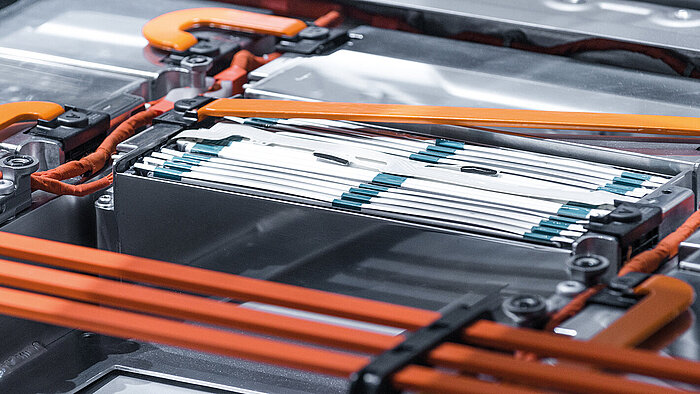

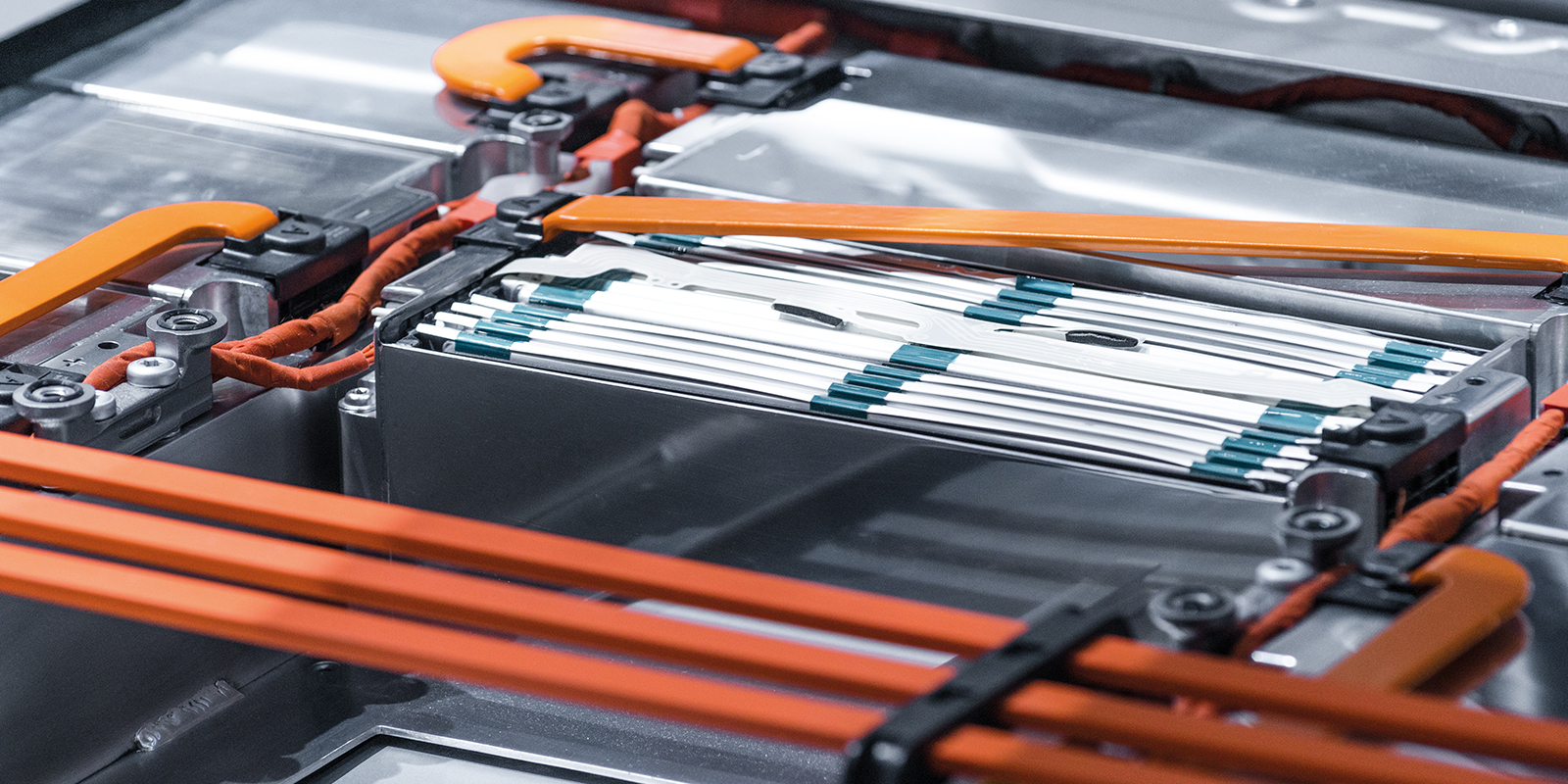

Battery management

The development of powerful energy storage systems increases the need for innovative and robust battery systems. State-of-the-art busbars must transmit enormous power. Ultrasonic welding is a highly productive process. Herrmann Ultraschall is able to reproduce a high quality joint under one second cycle time by using high quality and high performance tools and generators (up to 12kW). The connections are characterized by high current carrying capacity and minimal contact resistance with high strength.

Joining aluminum and copper is often a challenge in automation. Ultrasonic metal welding is an excellent solution for permanently bonding the two materials.

As one of the world's leading developers of customer-specific lithium-ion battery cells, CUSTOMCELLS® pursues the lowest possible reject rate in battery production with maximum process reliability. For the welding of its applications, the development and production company relies on ultrasonic technology in one of their production lines. The ultrasonic welding systems from Herrmann Ultraschall used there minimized the reject rate and optimized production efficiency.

This is the joint mission from EBA , Herrmann, a growing group of committed companies, institutes and universities to establish a complete domestic battery value chain. We are proud to be a certified member!

Downloads

BATTERY
BATTERY pdf 2 MB pdf 1 MB pdf 1 MB pdf 2 MB
AUTOMOTIVE
AUTOMOTIVE, BATTERY pdf 2 MB pdf 2 MB pdf 2 MB pdf 1 MB pdf 2 MB pdf 1 MB pdf 2 MB pdf 994 KB
FUNDAMENTALS OF METALS
AUTOMOTIVE, BATTERY pdf 2 MB pdf 1 MB pdf 2 MB
Whitepaper: 3 Boosters for E-Mobility
AUTOMOTIVE, BATTERY pdf 3 MB pdf 3 MB
perfect product

Ultrasonic metal welding

APPLICATION ENGINEERING
We work with you to develop customized solutions which correspond to your demands precisely. As experts in our field, we develop applications which make your project a success. Here, we rely on long-standing technology partnerships and the results from over 40 high-tech laboratories around the world.
PERFECT PRODUCT
We offer a premium product portfolio with the highest quality standards – Made in Germany. We stand for top weld results, professional integration and durability of all ultrasonic components and modules for an economical overall solution.
GLOBAL SERVICE
We guarantee reliability, safety and a quick on-site service as part of our concept, and immediate support in over 20 countries. For you, this means quick help when you really need it – at any time and in your local language.
SUSTAINABILITY
A simple route to more sustainability: not a problem with our efficient ultrasonic technology! The ability to do without joining materials and the low energy consumption mean that your production process will automatically become more sustainable. Reliable bonding will also reduce your rejects and prevent you from generating unnecessary waste.
